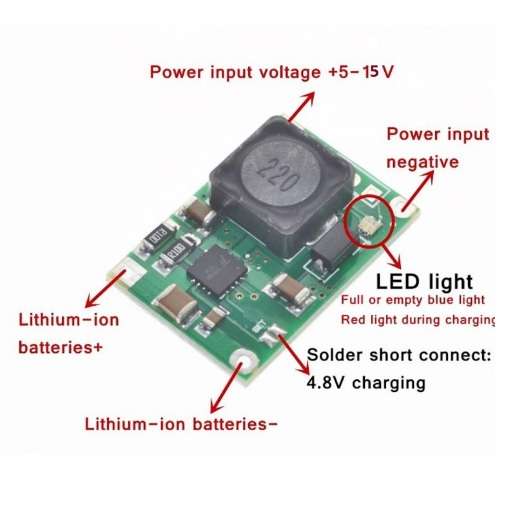

ماژول شارژ باتری لیتیومی 2 سل مدل TP5100

ماژول شارژر و محافظ باتری لیتیومی مدل TP5100 می تواند به دلخواه کاربر 1 و یا 2 باتری لیتیومی را شارژ نماید. برای تعیین تک سل و یا دو سل بودن کافی است جامپر SET روی برد را لحیم نمایید.

از ویژگی های ماژول شارژر TP5100 می توان به :

ابعاد کوچک

نشانگر LED

محافظت دما , جریان , اتصال کوتاه و ... اشاره کرد.

TP5100 4.2v 8.4v Single Double Lithium Battery Charge Management Lion Battery Compatible 2A Charging Board is a double switch buck 8.4V, single cell 4. 2V lithium battery charge management chip. Its ultra-compact QFN16 package and simple external circuit, making TP5100 ideal for portable equipment so large current charging management applications. Meanwhile, TP5100 built-in input overcurrent, under-voltage protection, over-temperature protection, short circuit protection, battery temperature monitoring, reverse battery protection.

TP5100 has 5V-15V wide input voltage, dual battery trickle charge into pre-charge, constant current, constant voltage three-phases, pre-charge current trickle charge current through an external resistor adjustment, the maximum charge current up to 2A. TP5100 with a frequency of 400kHz switching mode makes it possible to use a smaller outer Suo device and the large current charging still maintains a smaller amount of heat.

TP51OO built-in power PMOSFET, anti-intrusion circuit, so no anti-intrusion protection and another external Schottky diode.

QUICK OVERVIEW

1. Input voltage: 5-15V DC power supply.
2. Charge status: full and unloaded blue lights, charging red.
3. Double 8.4v / 4.2v lithium rechargeable single .
4. Programmable charge current. 0. 1A-2A .
5. Programmable steady precharge current 10% -100%.
6. Wide operating voltage, maximum reach I8V.
7. Red and green LED charge status indicator.
8. Chip temperature protection, overcurrent protection, under voltage protection.
9. Battery temperature protection, reverse battery shutdown, short circuit protection.
10. Switching frequency 400Khz, usable inductance 20uH and more.
